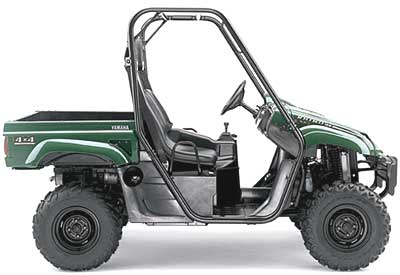

2004 Yamaha Rhino 660 4x4
images/NewVehicles/2004_2_rhino660.jpg
2004 Models
Color Options

Additional Features

Read a Review

Write a Review

Print a Brochure

Compare 2 Vehicles

Return to List
See what other riders say:
- Yamaha Rhino
- What an incredible machine!
- The future of ATVing

Introducing a Powerful "New" Concept in Off-Road Adventure... The Rhino 660.

Now, you can take someone along as you hunt, work or just plain explore in places other side-by-sides simply can¹t. All in unparalleled comfort. That's because only the Rhino 660 offers a four-wheel independent-suspended chassis (7.3 in. of travel front and rear) plus the highest ground clearance (12.1 in.) in the business for the plushest ride ever offered in a side-by-side. But that's just the beginning.

The Rhino 660 is also the most powerful side-by-side ever created, courtesy of its liquid/oil-cooled 660cc five-valve engine. Combine that with Yamaha¹s exclusive Ultramatic™ automatic transmission (with industry-leading all-wheel engine braking) and On-Command™ push-button 2WD/4WD/4WD Diff Lock system.

Throw in triple-hydraulic disc brakes, 8.5-gallon fuel capacity and a dump bed that will carry up to 400 pounds of cargo - and you¹ve just invented the perfect machine for hunting, playing, working, you name it.

Suddenly everybody wants to be your friend.

M.S.R.P. $8,499* (Green)
M.S.R.P. $8,899* (RealTree Hardwoods Hunter Edition)


GENERAL INFORMATION
INSURANCE Get an Insurance Quote
MANUFACTURER Yamaha
MODEL YEAR 2004
MODEL Rhino 660 4x4
M.S.R.P. $8,699.00
ENGINE 660cc, 4-Stroke Single, Liquid Cooled w/ Fan, 5-Valve SOHC
DISPLACEMENT 660cc
BORE X STROKE 100mm x 84mm
COMPRESSION RATIO 9.1:1
CARBURETION Mikuni 42mm BSR
IGNITION DC – CDI
STARTER Electric
TRANSMISSION Yamaha Ultramatic® V-Belt with all-wheel engine braking / High,Low,Neut.,Rev.
FINAL DRIVE Yamaha On-Command® push button 3-way locking differential, 2WD, 4WD, locked 4WD; Shaft
SUSPENSION Front: Independent Double Wishbone, 7.3 in. w/ 5-way Preload Adj.
Rear: Independent Double Wishbone, 7.3 in. w/ 5-way Preload Adj.
BRAKES Front: Dual Hydraulic Disc, Twin Piston
Rear: Hydraulic Disc, Self adjust parking system, Shaft Mount
TIRES Front: 25 x 8-12 NHS
Rear: 25 x 10-12 NHS
LENGTH 113.5 in.
HEIGHT 72.9 in.
WIDTH 54.5 in.
WHEELBASE 75.3 in.
DRY WEIGHT 1049 lbs.
GROUND CLEARANCE 12.1 in.
FUEL CAPACITY 8.5 Gallons
LOAD CAPACITY 400 lbs.
TOWING CAPACITY 1212 lbs.
COLORS Hunter Green
Realtree Hardwoods® High Definition Camouflage - M.S.R.P. $9,099
